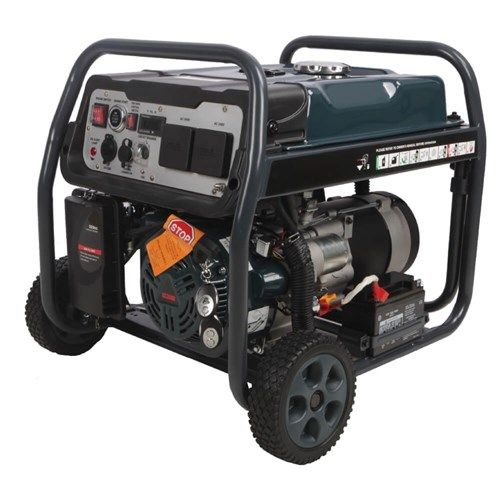

Welling & Crossley 3.75 kVA Portable Generator with E-Start
The Welling and Crossley P3750 is an AVR (automatic voltage regulated) generator with E-start.
Supplied with transport kit (handles and wheels), this generator is Euro 5 emissions compliant. The generously sized 15L fuel tank and economical motor allows longer run times.
The WC-P3750 packs a lot of power in a compact footprint.
AVR (Automatic Voltage Regulator):
An AVR stabilises the output voltage of a generator, preventing fluctuations that can damage electronic equipment. It ensures a steady and consistent voltage level, enhancing the safety and reliability of the generator.
2-Wire Start:
This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal
Fuel Efficient:
This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.
Technical Specifications:
Product Code: 811625
Model Rating: 3.75kVA
Max AC Output: 3200W
Rated AC Output: 2800W
Voltage: 240V AC
Type: Open Frame AVR
Frequency: 50Hz
Connections: 2 x IP44 15A, 1 x USB Type A (18W), 1 x USB Type C (15W)
Engine: WC-230
Type: Single cylinder, 4 stroke, OHV air-cooled petrol
Displacement: 223cc
Speed: 3000rpm
Low Oil Protection / Warning: Fitted
Ignition System: Transistor Ignition
Starting Type: Recoil / Electronic / 2-Wire / Wireless Remote
Fuel Tank Capacity: 15L
Fuel Consumption: 0.6 L/hr @ ΒΌ load
Dimensions & Performance:
Product Dimensions: 600 x 580 x 560mm
Dry Weight: 45kg
Operating time at 25% Load: 24.6hr
Noise Level @ 7m: 68 dBA
Limited Warranty: 2 Years
Additional:
Oil: 0.6L SAE10W-30
Spark Plug: Torch F6TC, Champion RN9YC
Fuel Type: Petrol - 91 octane unleaded
Power Factor: 1
Packaging Dimensions: 605 x 470 x 507mm
